  • Part #: GT-N3/SL-BBH

-
+

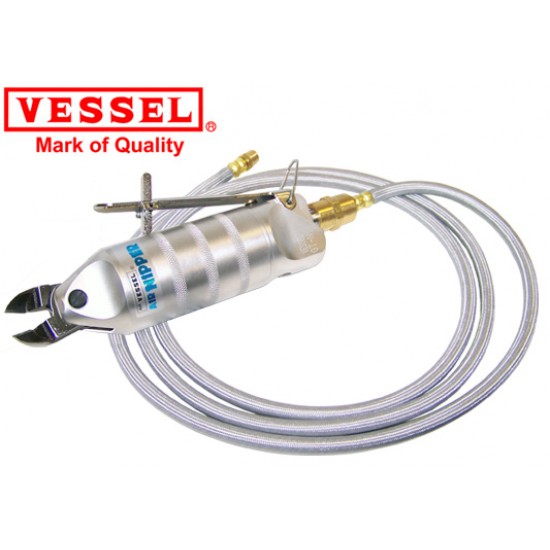

Size #3 Handheld Air Nipper Set with High-Speed Steel Cutting Blade, Tapered Head, 25° Angle

This VESSEL handheld air nipper set is a complete package for cutting and/or crimping wire, terminals, or trimming component leads on thru-hole PCB’s. The cutting blade can easily be rotated for left-hand or right-hand operation. Replacing manual-operated nippers with VESSEL’s ergonomic air-powered cutters can help reduce operator fatigue and ergonomic issues.

The light-weight air nipper body is crafted out of durable aluminum, has a spring-return piston design, and comes furnished with a knurled-pattern grip on the housing to prevent slippage, a CE-compliant safety-lever throttle, an 8-foot nylon braided air hose with fittings, and a hook for hanging the tool up when not in use.

The N3BBH90 cutting jaw has a 25° angle, a tapered head for strength, a beveled cut edge, and is made of high quality tool steel with brazed high-speed steel cutting edge inserts for long-life and durability. A mounting pin securely fastens the cutting jaw to the nipper body, which makes it very easy to change out or replace the jaws.

Model GT-N3/SL-BBHcan cut 0.04” max. copper, 0.02” max. soft steel, 0.01” max. piano wire, and 0.08” max. soft plastic at air pressure of 58-73 psi.

Other size air nipper bodies and cutting blades are available for various cutting and crimping applications.

Specifications:
Blade Opening: 0.16” (4mm)
Effective Cut Length: 0.43” (11mm)
Weight: 0.21 lbs (112 g / 3.4 oz)
Overall Length: 4.41” (112mm)
Body Diameter: 0.91” (23mm)
Supply Air Pressure: 58-73 psi

Complete Set Includes:
GT-N3/SL - Handheld Air Nipper Body w/Safety Lever
N3BBH90 - Cutting Blade, Tapered Head, High-Speed Steel, (25° Angle)
A-16355-8 - 8' Nylon Braided Air Hose w/Fittings
Replacement / Optional Parts:
GT-N3/SL - Handheld Air Nipper Body w/Safety Lever (No Blade)
N3BBH90 - Cutting Blade, Tapered Head, High-Speed Steel, 25° Angle
N3AS - Cutting Bade, OvelHead, Alloy Steel, 25° Angle
A-16355-8 - 8' Nylon Braided Air Hose w/Fittings
Size #3 Handheld Air Nipper Set with High-Speed Steel Cutting Blade, Tapered Head, 25° Angle
