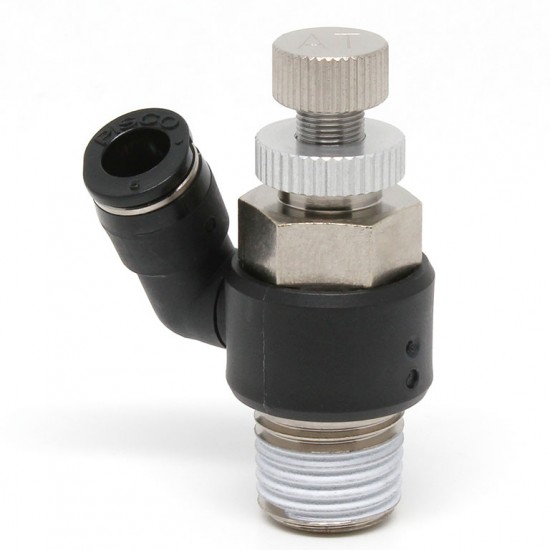

The image is JSS6-02AL. The actual color of resin body and release ring is light-gray.
Low-flow type Speed Controller for driving device. Best suitable for the fine speed adjustments of low-speed cylinders.
Model type: Free
Weight: 36.0g
Shipping unit: 1pc.
Resin: PBT
Metal: Brass with electroless nickel plating
Seal Rubber: NBR HNBR
Port size
Tube dia.: φ6m
Thread size: R1/4
Specifications
Fluid medium: Air
Operating pressure range: 0.1～0.9MPa
Check valve cracking pressure: 0.05MPa
Operating temp. range: 0～60℃(No freezing)
Advantages
Low-flow type Speed Controller for driving device. Best suitable for the fine speed adjustments of low-speed cylinders.
Precise control for low speed cylinder.
Free flow rates are equivalent to those of standard products. Return strokes can be driven at high speed.
