JSS4-M3AW

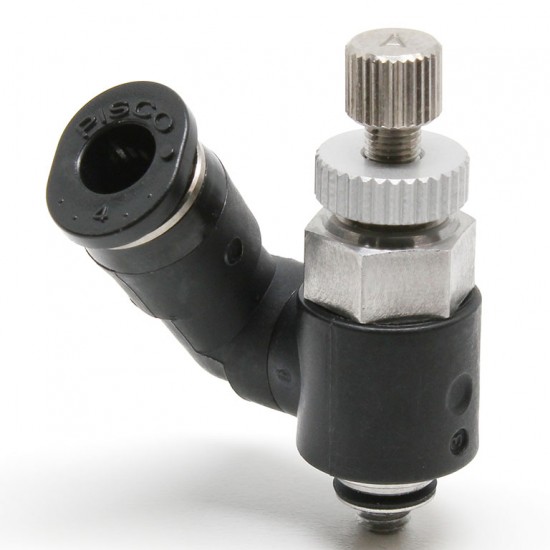

The image is JSS4-M3A. The actual color of resin body and release ring is light-gray.

The most standard Speed Control Valve for driving devices.

Model type: Free
Weight: 6.5g
Shipping unit: 1pc.

Resin: PBT
Metal: Special stainless steel
Seal Rubber: NBR HNBR

Port size
Tube dia.: φ4m
Thread size: M3x0.5

Specifications
Fluid medium: Air
Operating pressure range: 0.1～0.9MPa
Check valve cracking pressure: 0.05MPa
Operating temp. range: 0～60℃(No freezing)

Advantages
The most standard Speed Control Valve for driving devices.
The tube lead-out directions are free.
The resin body rotates and the tube lead-out direction can be changed.
For Free type, the fitting part rotate.
For Free type, the fitting part and resin body rotate.
Clean-room Package, best suitable for speed control in cleanroom, is prepared. (Optional)
Fluorine grease is applied. Washed by clean air and packed in ISO class 6 equivalent clean-room.
