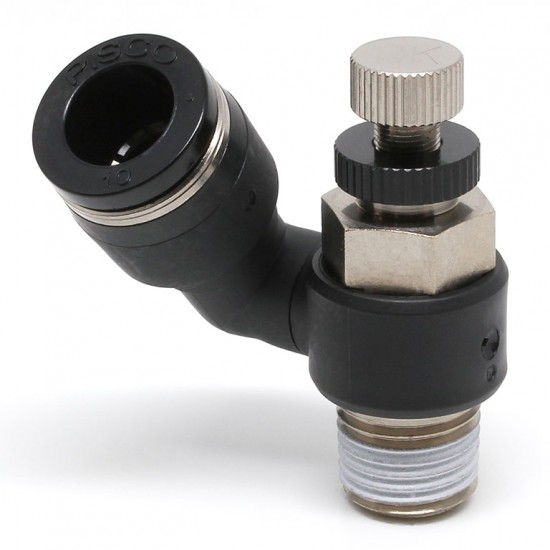

The image is JSS10-02BK. The actual color of resin body is light-gray and release ring is light-blue.
The most standard Speed Control Valve for driving devices.
Model type: Free Low Cracking Pressure type
Weight: 42.0g
Shipping unit: 1pc.
Resin: PBT
Metal: Brass with electroless nickel plating
Seal Rubber: NBR HNBR
Port size
Tube dia.: φ10m
Thread size: R1/4
Specifications
Fluid medium: Air
Operating pressure range: 0.05～0.5MPa
Check valve cracking pressure: 0.02MPa
Operating temp. range: 0～60℃(No freezing)
Advantages
The most standard Speed Control Valve for driving devices.
The tube lead-out directions are free.
The resin body rotates and the tube lead-out direction can be changed.
For Free type, the fitting part rotate.
For Free type, the fitting part and resin body rotate.
Clean-room Package, best suitable for speed control in cleanroom, is prepared. (Optional)
Fluorine grease is applied. Washed by clean air and packed in ISO class 6 equivalent clean-room.
