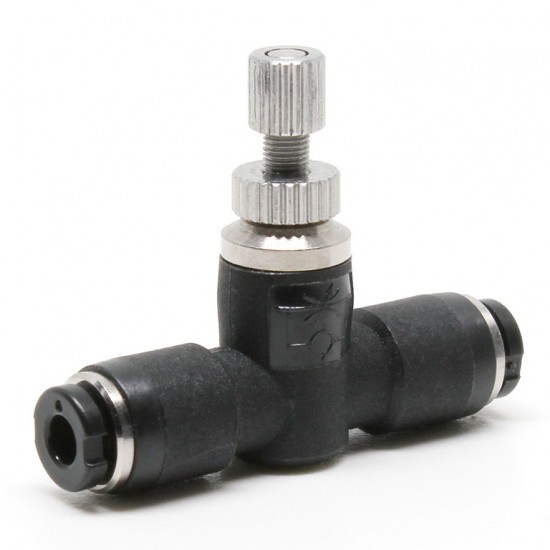

JSMU2L

Low-flow type Speed Controller for driving device. Best suitable for the fine speed adjustments of low-speed cylinders.

Model type: Small Union Straight
Weight: 2.8g
Shipping unit: 1pc.

Resin: PBT
Seal Rubber: NBR HNBR

Port size
Tube dia.: φ2mm

Specifications
Fluid medium: Air
Operating pressure range: 0.1～0.9MPa
Check valve cracking pressure: 0.05MPa
Operating temp. range: 0～60℃(No freezing)

Advantages
Low-flow type Speed Controller for driving device. Best suitable for the fine speed adjustments of low-speed cylinders.
Precise control for low speed cylinder.
Free flow rates are equivalent to those of standard products. Return strokes can be driven at high speed.
