It prevents unnecessary manual adjustments during the operations.

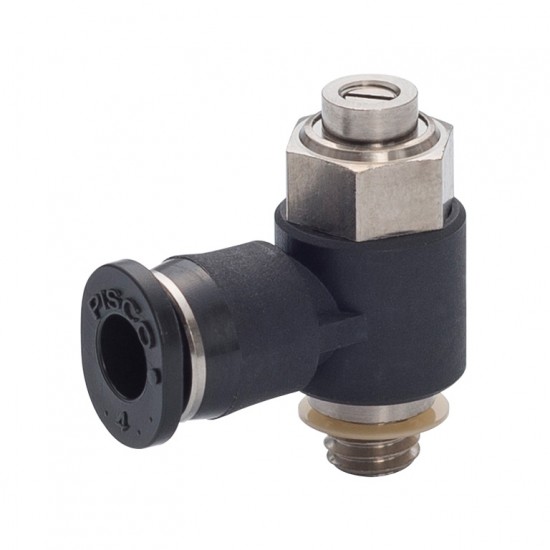

Model type: Elbow
Weight: 5.6g
Shipping unit: 1pc.
Resin: PBT
Metal: Special Stainless Steel
Seal Rubber: NBR HNBR
Port size
Tube dia.: φ3m
Thread size: M3x0.5
Specifications
Fluid medium: Air
Operating pressure range: 0.1～0.9MPa
Check valve cracking pressure: 0.05MPa
Operating temp. range: 0～60℃(No freezing)
Advantages
It prevents unnecessary manual adjustments during the operations.
Use a slot screwdriver to adjust the needle (speed adjustment).
Design without an external needle for speed adjustment.
Approx. 2/3 height of the conventional Speed Controller.*
Suitable for a small space. *Compared to the max. height of the conventional Speed Controller.
Selectable from 2 types.
360°rotatable resin body (Elbow type). 360°rotatable resin body and push-in fitting part (Free type). Free direction for piping.
