PP (Polypropylene) is applied for the body material to adapt to clean environment.

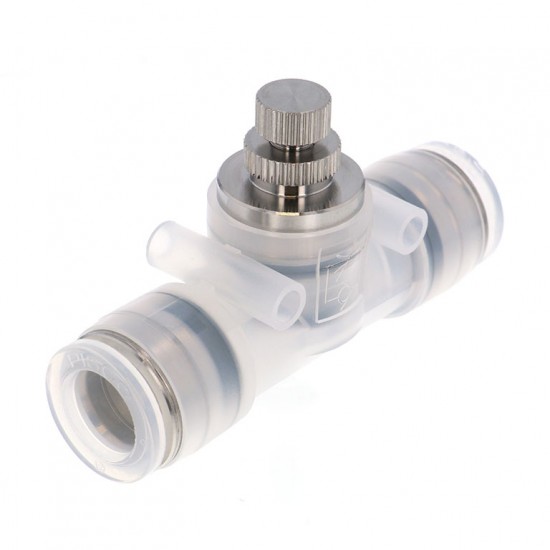

Model type: Small Union Straight
Weight: 62.0g
Shipping unit: 1pc.
Resin: PP
Metal: SUS304
Seal Rubber: EPDM
Port size
Tube dia.: φ12mm
Specifications
Fluid medium: Air, Other(Conditional*1)
Operating pressure range: 0.05～1.0MPa(at0～20℃)*2
Check valve cracking pressure: 0.005MPa
Operating temp. range: 0～80℃(No freezing)
Advantages
PP (Polypropylene) is applied for the body material to adapt to clean environment.
Easy to check sanitary condition.
The resin body color is clear (semitranparent).
It is compatible with special specifications.
Sealing rubber material can be changed from EPDM to FKM or HNBR depending on applications.
