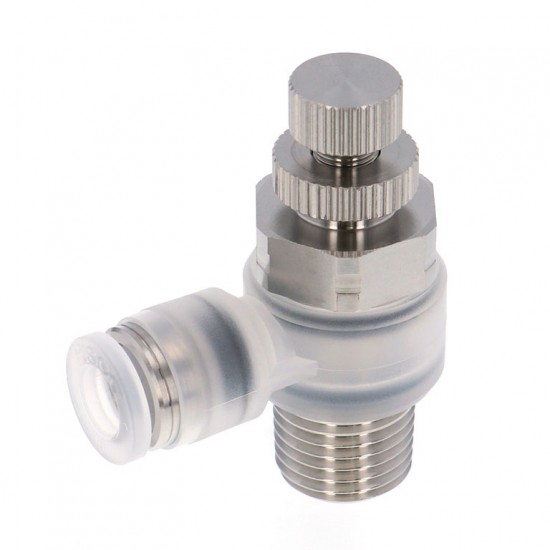

The image is PJSC6-02B. The actual product is applied seal tape on thread.
PP (Polypropylene) is applied for the body material to adapt to clean environment.
Model type: Elbow
Weight: 38.0g
Shipping unit: 1pc.
Resin: PP
Metal: SUS304
Seal Rubber: EPDM
Port size
Tube dia.: φ6m
Thread size: R1/4
Specifications
Fluid medium: Air, Other(Conditional*1)
Operating pressure range: 0.1～1.0MPa(at0～20℃)*2
Check valve cracking pressure: 0.05MPa
Operating temp. range: 0～80℃(No freezing)
Advantages
PP (Polypropylene) is applied for the body material to adapt to clean environment.
Easy to check sanitary condition.
The resin body color is clear (semitranparent).
The thread specification can be chosen from Sealock treatment and no-sealock treatment depending on applications
