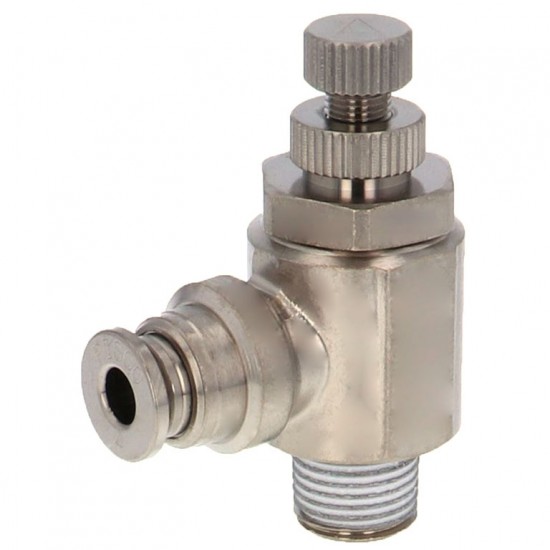

KJSC4-01A-1

Not only the body but the release ring is made of brass, thus best suitable for high heat and spatter environments.

Model type: Elbow without cover
Weight: 42.0g
Shipping unit: 1pc.

Metal: Brass with electroless nickel plating
Seal Rubber: HNBR

Port size
Tube dia.: φ4m
Thread size: R1/8

Specifications
Fluid medium: Air
Operating pressure range: 0.1～1.0MPa(at 20℃ in the operating environment and fluid temperature)
Check valve cracking pressure: 0.05MPa
Operating temp. range: 0～100℃(No freezing)

Advantages
Not only the body but the release ring is made of brass, thus best suitable for high heat and spatter environments.
No cover type is also standardized for a variety of applications.
No cover type is recommended for the applications which does not require spatter resistance.
