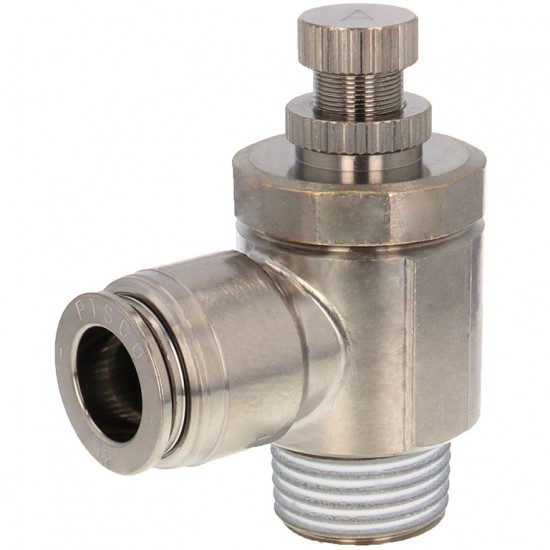

KJSC12-04A-1-F

Not only the body but the release ring is made of brass, thus best suitable for high heat and spatter environments.

Model type: Elbow without cover
Weight: 181.0g
Shipping unit: 1pc.

Metal: Brass with electroless nickel plating
Seal Rubber: FKM

Port size
Tube dia.: φ12m
Thread size: R1/2

Specifications
Fluid medium: Air
Operating pressure range: 0.1～1.0MPa(at 20℃ in the operating environment and fluid temperature)
Check valve cracking pressure: 0.05MPa
Operating temp. range: 0～120℃(No freezing)

Advantages
Not only the body but the release ring is made of brass, thus best suitable for high heat and spatter environments.
It is compatible with special specifications.
HNBR is used for seal material. FKM specification is also available as option.
No cover type is also standardized for a variety of applications.
No cover type is recommended for the applications which does not require spatter resistance.
