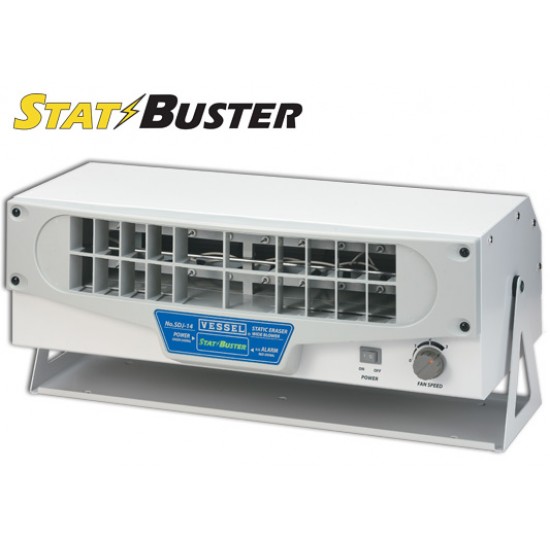

SDJ-14(110V)

Wide Area Bench Mount Ionizer

DISCONTINUED ITEM
Clearance and discontinued items cannot be returned or exchanged

Wide-Fan Type
FAST STATIC ELIMINATION 0.7 SECONDS!
Ionizing widened to 23.6" x 47.2" (600mm x 1200mm)

The SDJ-14 Stat-Buster was designed taking into consideration the large volume of air blown by the cross-flow fan and the ion flow, resulting in a wide electricity removal area of 23.63" x 47.24" (600mm x 1200mm). High-voltage DC corona discharge provides the SDJ-14 with it's powerful static removal capability. The needle electrode employs a multiple needle construction of 8 positive and 8 negative needles each that makes it difficult to collapse the ion balance.

Key Features and Benefits:
Power supply over-current prevention and needle electrode discharge (electrode discharge) for two-stage safety construction
LED indicators provide visual warning that unit is operating at an abnormal high voltage
SOLID GREEN: Normal Operation
BLINKING RED: Warning - Abnormal High Voltage
Each of the 8 positive and 8 negative easily removable discharge needles release positive and begative ion output, providing powerful static elimination of the charged items
Large cross-flow fan helps to quickly and efficiently eliminate static
Front panel provides easy access to power switch and fan speed adjustments (off / low / mild / strong)
Ionizing direction is easily adjusted by tilting the base of the SDJ-14 and tightening the side screw

Specifications:
Ion Generation Method: High voltage DC corona discharge (8positive and 8 negative needles)
Applicable Standards: PSE (Japan Product Safety Electrical Application and Materials)
Input Voltage: AC 90~128V
Power Consumption: 150mA
Output Voltage: ± 6.5 kV DC
Max. Air Flow: 3.3m3/min (measured at 11.81"/300mm in the front of unit)
Working Temp. Range / Working Humidity Range: (+) 5~40°C / 35~65% RH (no dewing or freezing)
Dimensions (with stand): 8.9" x 20.35" x 10.24 (W x D x H) / 225mm x 517mm x 260mm (W x D x H)
Weight: 18.75 lbs (8.5kg)
Ion Balance: Within ± 30V (within ± 10V before shipping)
Distance from Target Area: Approx. 11.81"~47.24" (300~1200mm)
Ozone Generation: less than 0.05ppm (measured at 1.97"/50mm in the front of unit)
Power Cord Length: 6ft (1.8m)
