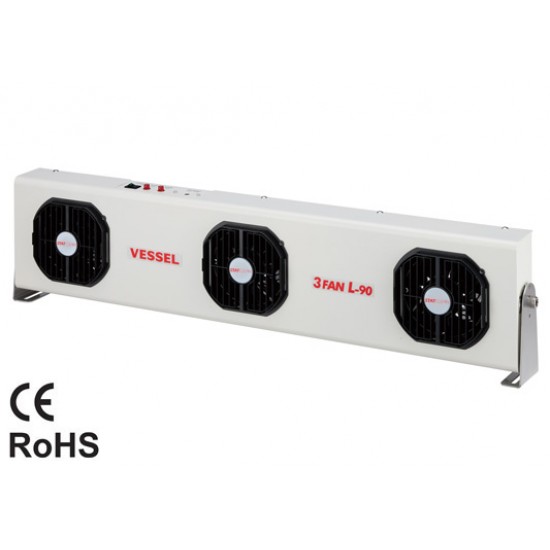

L-90-E

Butterfly Louver Triple Fan Overhead Ionizer

High-Speed Spot Removal of Static Charges
Fan Louvers Can Be Angled to Provide Wide Area Static Removal
Capacitive-Coupled Electrode Needles Maintain Superior Ion Balance and Long Life
One-Touch Removal of Front Cover Provides Easy Maintenance

Specifications:
Model Number (EDP #): CF300-E (621657)
Ionizing Method / Applied Voltage: Piezoelectric high-frequency / AC 10kV (p-p)
Power Supply and Current Consumption: DC 24V  ±5% / 3A (max)
Ion Balance: Within ±10V
Decay Time: Within 1.5 sec (43.5psi/0.3MPa at 12"/300mm) @ max fan speed
Air Pressure / Operating Fluid: 14.5psi to 101.7psi MAX (0.1-0.7MPa), Clean Dry Air
Dimensions (LxHxD): 32.1" x 7.91" x 3.58" (814 x 201 x 91mm)
Estimated Weight: 10.36 lbs (4.7kgs)
Airflow: 165.9 ft3/min (4.7m3/min) MAX
Noise Level: 72dBA @ (1m) in front of device and max fan speed
Accessories: AC adapter AD24-IT37 (100-240V AC), 5.9' (1.8m) AC cable
Markings: CE, RoHS
Country of Origin: Japan
