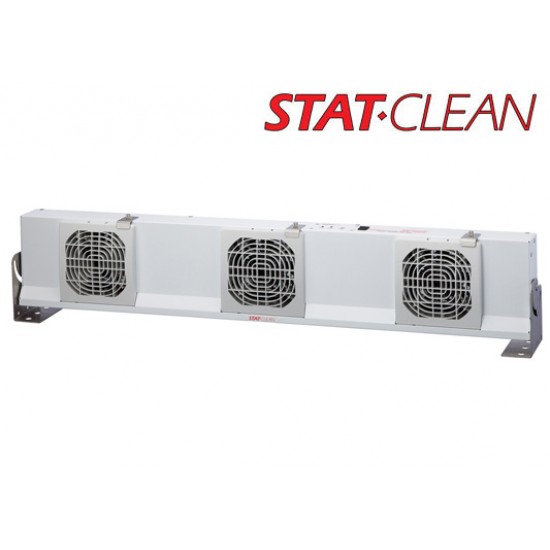

3F-12(115V)

Overhead Triple Fan Ionizer

DISCONTINUED ITEM
Clearance and discontinued items cannot be returned or exchanged

IMPROVED PERFORMANCE

Features include:
Piezoelectric high-frequency AC corona discharge Ionizing method
Electrode needles: Inconel
Maintains an ion balance of ±5 V using a piezoelectric transformer and capacitive-coupled electrode needles (patent pending)
Includes 24 VDC 300 mA service power supply
The electrode needle plate is removable for improved maintenance
Includes a terminal for externally outputting warning signal to be installed in machines

Specifications:
Ion Generation Method: High Voltage AC Corona Discharge
Applied Voltage: AC 2.4kV
Input Voltage: DC 24V  ±5% (50/60Hz) 1200mA (max)
Dimensions: WITH STAND: 7.9"x6.0"x3.7" (200x151x95mm) H x W x D; NO STAND: 7.0"x5.6"x3.4" (180x142x87mm) H x W x D
Weight: 3.1 lbs (1.4Kg)
Airflow: 3.4m3/min (max)
Noise Emission: 58dBA (Measured at 3.3ft / 1m)
Ozone Generation: 0.05ppm or less (measured at 1.97" / 50mm in front of unit)
Working Temp. Range / Working Humidity Range: 41~140°F / 35~65% RH (non-condensing, non-freezing); 5~60°C / 35~65% RH (non-condensing, non-freezing)
Ion Balance: Within ± 5V, Decay Time: 1.8sec or less
