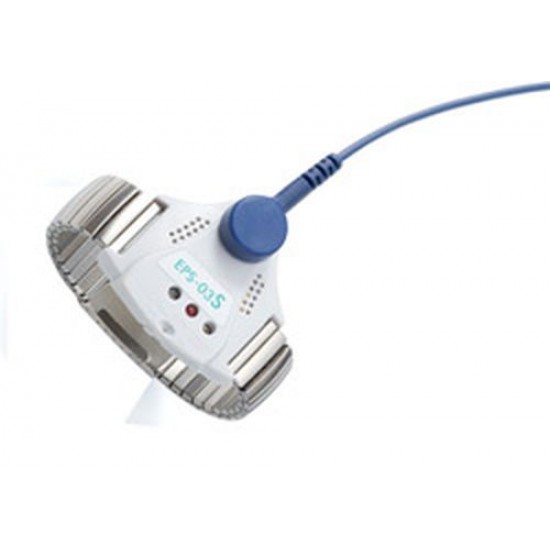

ESD WRIST STRAP WITH BUILT-IN GROUND ALARM - METAL BAND
VESSELS’s EPS-03 Series ESD wrist strap incorporates anti-dust measures for using as an onsite guide for controlling work in general assembly or cleanroom environments.
A unique blinking LED indicator as well as a high octave audible alarm sound alerts the operator of a cord break, loose pin jacks, or other ground defects which help floor managers and supervisors to achieve “zero” defects. Additionally, the built-in LED and audible alarm will notify the technician of low battery life when it reaches below 20%.
Other special features include:
Stretchable metal band fits comfortably around wrist
Sensitivity adjustment trimmer provides fine adjustment for each work area
Stainless steel is used for the metal pieces to support operators with metal allergies
Model EPS-03S: ESD Wrist Strap with Built-In Ground Alarms, Metal Band, Small Size
Model EPS-03M: ESD Wrist Strap with Built-In Ground Alarms, Metal Band, Large Size
Specifications:
Detection Center: ABS Resin
Metal Part: Stainless Steel (SUS316L)
Band: Stainless Steel (SUS304)
Band Length: ESP-03S - 130mm (approx); EPS-03M - 160mm (approx)
Resistance: Metal to Ground Cord about 2MO
Accessories: Ground Cord, Full Length 1.8m; 1MO Current Limit Resistor applied, Alligator Clip
Battery: CR1220
Battery Life: 8 Hour Day x 500 Days (approx); 15 Hours with Ground Alarm activated
- Stock: In Stock
- Manufacturer: Vessel
- Model: EPS-03M
- SKU: EPS-03M
