Catalog Pages:

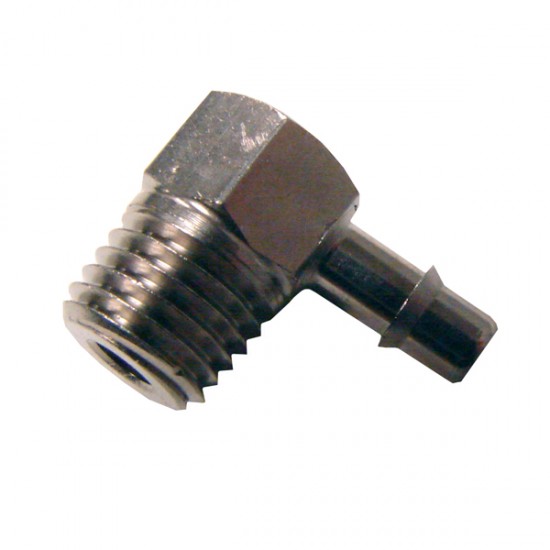

ELB30-1/16
Elbow Thread to Barb Fittings
Fixed Elbow Thread to Barb Fittings
1/16 NPT Thread to Barb Elbow Fittings Fixed Elbows with 1/16 NPT threads are available with barb sizes ranging from 1/16 to 1/4 tube id to accommodate application requirements. Pneumadyne's Pneu-Edge® style fittings feature a consistently sharp, single-barb design which provides a tighter grip and seal than standard multiple barbs. A smaller shank behind the barb allows polyurethane tubing to relax ensuring permanent installation without the need for clamps. Our solderless joint technology eliminates pull-out potential and results in straight barb alignment. Features:
Electroless nickel plated for corrosion resistance
Smoother tubing approach angle eases installation
Larger thru-hole for maximized flow
Recommended for use with polyurethane tubing
High quality, precision machined fittings
Pneumadyne ELB30-1/16
Fixed Elbow Thread to Barb Fittings
1/16 NPT Thread to Barb Elbow Fittings Fixed Elbows with 1/16 NPT threads are available with barb sizes ranging from 1/16 to 1/4 tube id to accommodate application requirements. Pneumadyne's Pneu-Edge® style fittings feature a consistently sharp, single-barb design which provides a tighter grip and seal than standard multiple barbs. A smaller shank behind the barb allows polyurethane tubing to relax ensuring permanent installation without the need for clamps. Our solderless joint technology eliminates pull-out potential and results in straight barb alignment. Features:
Electroless nickel plated for corrosion resistance
Smoother tubing approach angle eases installation
Larger thru-hole for maximized flow
Recommended for use with polyurethane tubing
High quality, precision machined fittings
Pneumadyne ELB30-1/16
$6.72
Ex Tax: $6.72
- Stock: In Stock
- Manufacturer: Pneumadyne
- Model: p40428
- SKU: ELB30-1/16
The product can be purchased in multiple of 25
