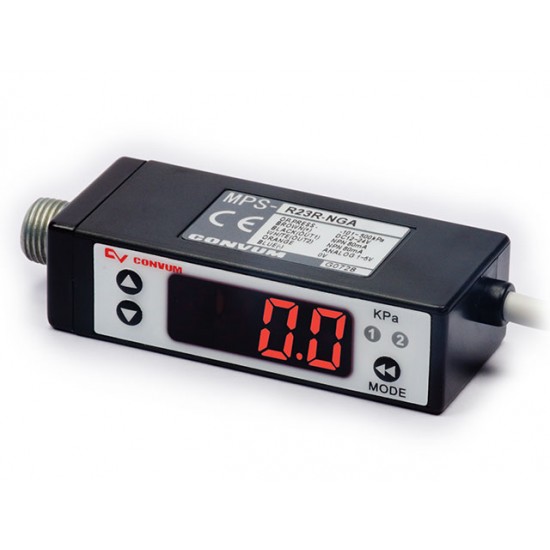

MPS-V23C-NGA-CV4

Wide pressure range,-0.1 ~ 1.0MPa - Vacuum pressure type: -101.3 kPa,Positive pressure: -0.1 ~ 1MPa; Compound pressure: - 101 ~ 500kPa

Easy settings - Use UP and DOWN keys to set the value. Automatic settings mode available.

Standard switch output and analog output - Switch output (open collector) Analog output (1 ~ 5V)

Specifications

Pressure range: Vacuum

Port size: C for Convum ejector mounting

Output type: NPN open collector

Cable: Grommet (2000mm cable)

Analog: 1~5v (standard)

Port size: For CV4 convum ejector
