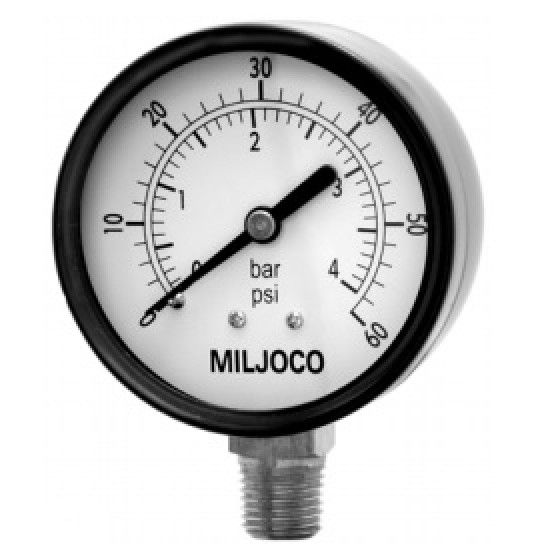

P4509L004
4.5 Dial Size, 30" Hg-0-60 psi Range, 10/10 Fig. (PSI), 1/1 Div. (PSI). The Miljoco P4509L Contractor's Gauge is attractively priced and meets or exceeds the popularly accepted standard for the commercial HVAC and building trades. This instrument features a surface mount nylon case, and uses high-temperature solder joints on the tube and socket, allowing it to be used on process fluids up to 200 degrees F. It is well-suited for service on air, water, glycol solutions, and gas. CAUTION: A coil syphon must be installed on the connection when used on steam applications.
TECHNICAL SPECS
CASE: Black fiber-reinforced nylon with a 3-hole surface-mount rear flange.
RING: Stainless steel.
LENS: Glass, acrylic optional.
DIAL: Aluminum, white finished with black markings.
POINTER: Aluminum, black, adjustable.
MOVEMENT: Brass with precision-milled teeth.
TUBE & SOCKET: Phosphor-bronze tube, lead-free brass socket.
CONNECTION: 1/4 NPT bottom outlet.
ACCURACY: 1% Full Scale (ASME B40.100 Grade1 A).
PROCESS TEMPERATURE: -40 to 200 degrees F (-40 to 93 degrees C).
AMBIENT TEMPERATURE: -40 to 140 degrees F (-40 to 60 degrees C).
Miljoco P4509L004
TECHNICAL SPECS
CASE: Black fiber-reinforced nylon with a 3-hole surface-mount rear flange.
RING: Stainless steel.
LENS: Glass, acrylic optional.
DIAL: Aluminum, white finished with black markings.
POINTER: Aluminum, black, adjustable.
MOVEMENT: Brass with precision-milled teeth.
TUBE & SOCKET: Phosphor-bronze tube, lead-free brass socket.
CONNECTION: 1/4 NPT bottom outlet.
ACCURACY: 1% Full Scale (ASME B40.100 Grade1 A).
PROCESS TEMPERATURE: -40 to 200 degrees F (-40 to 93 degrees C).
AMBIENT TEMPERATURE: -40 to 140 degrees F (-40 to 60 degrees C).
Miljoco P4509L004
$34.11
Ex Tax: $34.11
- Stock: 2-3 Days
- Manufacturer: Miljoco
- Model: p48163
- SKU: P4509L004
