PLF1598001

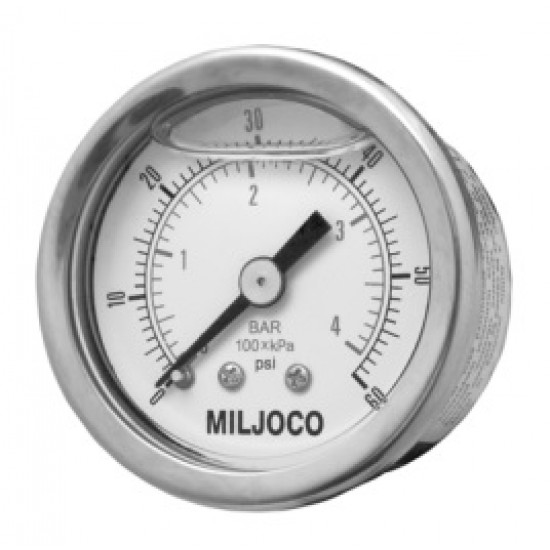

1.5 Dial Size, 30" Hg-0 & bar Range, 5 Fig. (PSI), 1 Div. (PSI), 0.2 Fig. (BAR). The Miljoco Models PLF1598L and PLF1598 are rugged & durable and suitable for a wide variety of commercial and general service applications. The stainless steel case is filled with glycerine to protect the internals against vibration and pulsation. This unit is completely weather-proof and excellent for pumps, air compressors, irrigation systems, and other installations suitable for brass process connections. CAUTION: A coil syphon must be installed on the connection when used on steam applications.
TECHNICAL SPECS
CASE: Stainless steel.
RING: Crimped stainless steel.
LENS: Acrylic.
DIAL: Aluminum, white finished with black markings.
POINTER: Aluminum, black, non-adjustable.
MOVEMENT: Brass with precision-milled teeth.
TUBE & SOCKET: Brass.
CONNECTION: 1/8" NPT, back outlet.
ACCURACY: 3-2-3% (ASME B40.100 Grade B).
PROCESS TEMPERATURE: 0 to 140 degrees F (-18 to 60 degrees C).
AMBIENT TEMPERATURE: 0 to 140 degrees F (-18 to 60 degrees C).
Miljoco PLF1598001
TECHNICAL SPECS
CASE: Stainless steel.
RING: Crimped stainless steel.
LENS: Acrylic.
DIAL: Aluminum, white finished with black markings.
POINTER: Aluminum, black, non-adjustable.
MOVEMENT: Brass with precision-milled teeth.
TUBE & SOCKET: Brass.
CONNECTION: 1/8" NPT, back outlet.
ACCURACY: 3-2-3% (ASME B40.100 Grade B).
PROCESS TEMPERATURE: 0 to 140 degrees F (-18 to 60 degrees C).
AMBIENT TEMPERATURE: 0 to 140 degrees F (-18 to 60 degrees C).
Miljoco PLF1598001
$16.51
Ex Tax: $16.51
- Stock:
- Manufacturer: Miljoco
- Model: p48121
- SKU: PLF1598001
