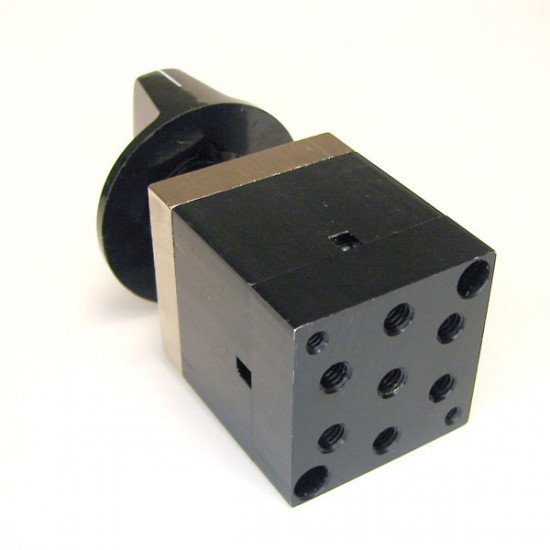

MPS-6-100-S

6-Position Selector Valves Selector Valves allow the actuation of up to six individual circuits from a common input port. Two styles of valves, Standard and Shut-off, are available to accommodate application requirements. The Standard Selector Valve directs flow through each output port as the knob is turned. The Shut-off Selector Valve requires the knob to be pushed-in and turned, blocking flow to the output ports until a position is selected. These 3-way valves exhaust to atmosphere upon selection of a new output port. A spring-loaded "wear compensating seat" retains a tight fit ensuring that the valve will not leak with wear. Features:
Common input port
10-32 (F) ports
Black anodized for corrosion resistance
Two styles of actuation
Panel mount
Detented knob

Pneumadyne MPS-6-100-S
