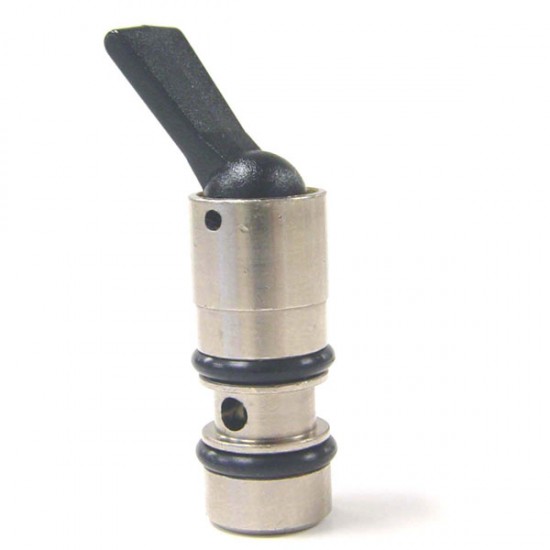

C032301

3-Way Normally Closed Cartridge Valves

Detented Toggle (3-Way Cartridge Valves) Cartridge valves are recommended for use in manifold systems and applications where space is limited. Upon insertion in the valve cavity, the Cartridge Valve is connected to the air passages machined into the manifold or valve block, eliminating the need for external plumbing. This compact valve package saves space and provides fewer potential leak-points in the application. Pneumadyne manufactures two series of Cartridge Valves to ensure that flow requirements are met. Both styles of valve are suitable for use in vacuum applications and offer flow rates of 15.5 scfm and 33 scfm at 125 psi. Features:
Compact size
Single stem design
Electroless nickel plated for corrosion resistance
Suitable for vacuum applications to 26" Hg
Durable nylon and metal toggles
Cavity drawings available

Pneumadyne C032301
