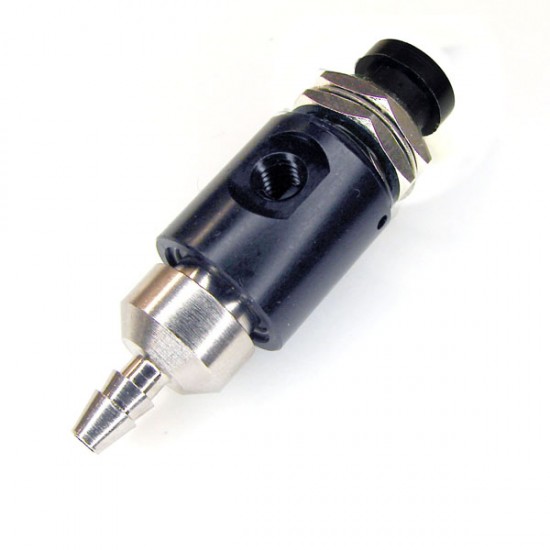

A0-20-5

.170 Barb Input Port, 2-Way Valves (2-Way Normally Closed Control Valves)

Push Button (.170 Barb Input, 2-Way Valves, Normally Closed) Pneumadyne's highly reliable "0" Series valves feature a swivel input port for aligment purposes and are ideal for limited space applications. An internal poppet design contributes to a long product life. The .170 barbed input port is recommended for use with .170 Id polyurethane tubing. Features:
Anodized & Electroless Nickel plated for corrosion resistance
Swivel input port for critical alignment
Durable nylon push button
Miniature size (OAL not more than 2.43")
10-32 F output port
Nuts and lockwasher provided

Pneumadyne A0-20-5
