Please contact us for replacement options.
10-32 F Ports, 4-Way Valves
Double Air Pilot (10-32 F, 4-Way Valves)
Pneumadyne offers two styles of 4-way valves with double air pilot operators for mounting versatility. The Universal "20" Series valve, part number S20U42-DP, can be mounted inline or on a multple-station manifold. The Manifold style valve, part number S20M42-DP, must be used with Pneumadyne's "20" Series standard manifold.
Precision machining and an exclusive plating process ensure a long product life and enable the valves to be used with lubricated and non-lubricated air.
Features:
3-Port 2-Position (3/2) valves
Balanced spool design
10-32 (F) double air pilot operated
Lubricated or non-lubricated air applications
Nuts and lockwasher provided

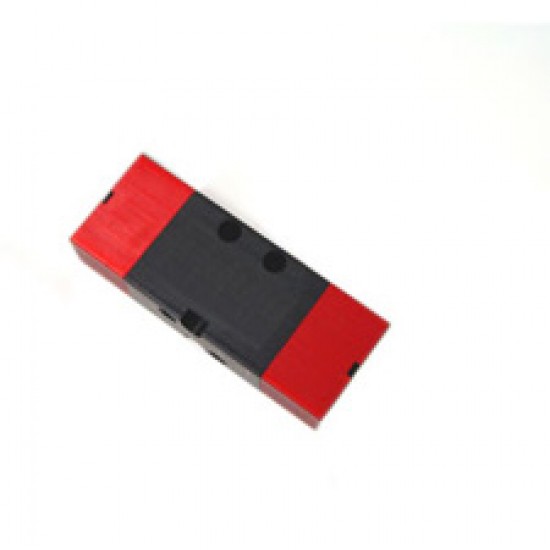

Pneumadyne S20U42-DP
Catalog Pages:
