Please contact us for replacement options.
10-32 F Ports, 4-Way Valves
Air Pilot (10-32 F, 4-Way Valves)
Pneumadyne's "20" Series 4-way valves are offered with a 10-32 (F) air pilot port. These 3-Port 2-Position (3/2) valves feature our exclusive PneuTef
plating which ensures a long product life and enables the valves to be used with lubricated or non-lubricated air.
The unique design of the Universal valve body, part number S20U42-AP, allows inline or multiple station manifold mounting. The Manifold ported body, part number S20M42-AP, must be used with Pneumadyne's "20" Series standard manifolds.
Features:
Mounting versatility
Balanced spool design
Lubricated or non-lubricated air applications
10-32 (F) air pilot port
Lockwasher and nuts provided

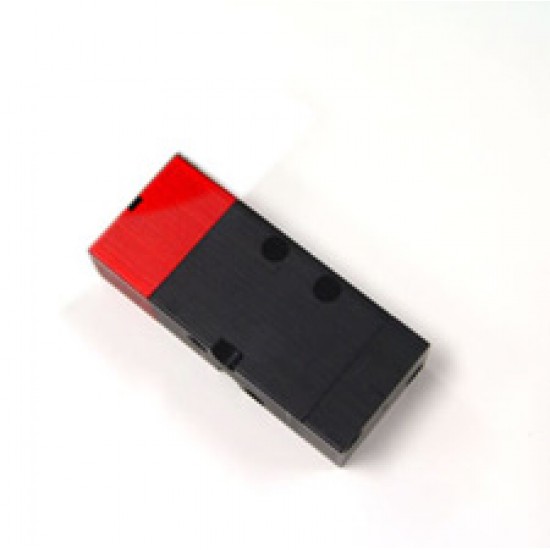

Pneumadyne S20U42-AP
Catalog Pages:
