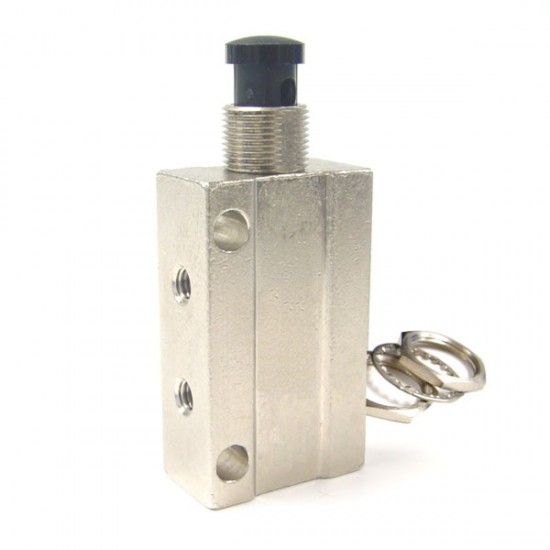

A4N-100-SR(discontinued)

10-32 F Ports, 4-Way Valves

Push Button (10-32 F, 4-Way Valves) Pneumadyne manufactures two complete series of 4-way valves with multiple actuator and porting options. "4" Series valves, part numbers A4C-100-SR & A4N-100-SR, are 3 Port 2 Position (3/2) valves with 10-32 (F) input and output ports. The non-threaded exhaust port relieves pressure to atmosphere. Our "45" Series valves, part numbers AP45-100-SR and AM45-100-SR, are 5 Port 2 Position (5/2) 4-way valves. The 10-32 (F) exhaust ports can be used to capture and remove exhaust flow from the application. Durable nylon and metal push buttons are offered to fit actuation requirements. Features:
4-Way 2-Position function
Durable nylon or metal push button actuators
Black anodized or electroless nickel plated for corrosion resistance.
Panel or surface mount
Nuts and lockwasher provided

Pneumadyne A4N-100-SR
