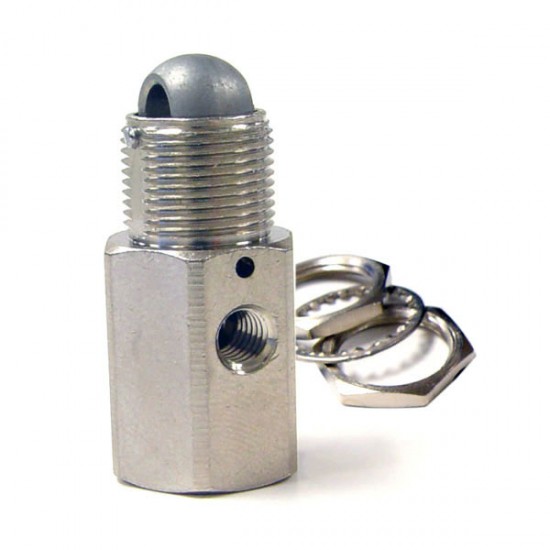

C030127

10-32 F Input Port, 3-Way Valves, Normally Closed

Ball (10-32 F Input, 3-Way Valves) Pneumadyne's 3-way normally closed valves with a Ball actuator are available in three configurations to fit application requirements. The Standard valves (part numbers C030107 & C030127) feature 10-32 (F) input and output ports and a non-threaded exhaust port. The Fully Ported valves (part numbers C030507 & C030527) also have a 10-32 (F) exhaust port for the capture and removal of exhaust flow. Rear Ported valves (part numbers C030907 & C030927) provide a streamline profile with side-by-side porting. Features:
Single stem design
Miniature size for limited space applications
Electroless nickel plated and black anodized for corrosion resistance
Accommodates Vacuum to 26" Hg
Numerous porting configurations
Nuts and lockwasher provided for panel mounting

Pneumadyne C030127
