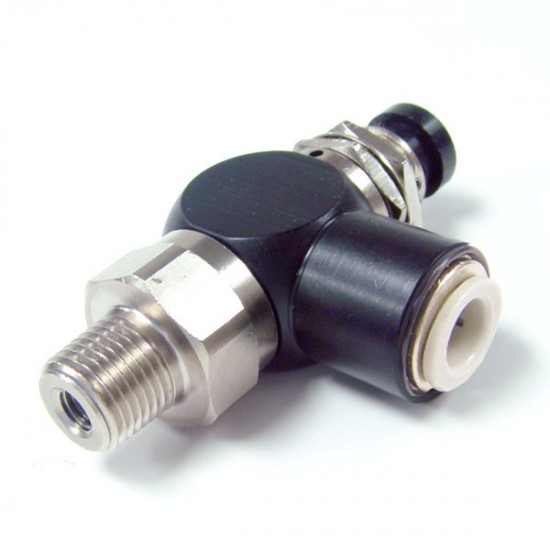

A11-30-16

1/8 NPT Input Port, 3-Way Valves (3-Way Normally Closed Control Valves)

Push Button (1/8 NPT Input, 3-Way Valves, Normally Closed) To ensure that flow and plumbing requirements are met, Pneumadyne manufactures four styles of 3-way valves with 1/8 NPT input ports. The "0" Series valve, part number A0-30-1, features a swivel input port for valve aligment purposes. The non-threaded exhaust port allows pressure to be relieved to atmosphere. Our "3" Series valve, part number A3-30-1, also features a swivel input port as well as a 10-32 (F) exhaust port to capture and remove exhaust flow from your application. Pneumadyne's "11" Series (part numbers begin with A11) features a swivel output port to accommodate alignment requirements. Push-to-connect ports also ease tubing connection and disconnection. The "300" Series valves, part numbers C030605 & C030625, are ideal for direct mounting in a manifold or other machine member. Features:
Black anodized and electroless nickel plated for corrosion resistance
Miniature size for limited space applications
Swivel ports accommodate aligment requirements
Numerous porting configurations
Nuts and lockwasher provided for panel mounting

Pneumadyne A11-30-16
