A0-20-1

1/8 NPT Input Port, 2-Way Valves (2-Way Normally Closed Control Valves)

Push Button (1/8 NPT Input, 2-Way Valves, Normally Closed) Pneumadyne manufactures several styles of 2-way valves with 1/8 NPT Input ports to fit your application
s plumbing requirements. The
0
Series valve, part number A0-20-1, features a swivel 1/8 NPT Input port to accommodate critical installation alignment and a 10-32 (F) output port.
11
Series valves (part numbers begin with A11) feature a swivel output port as well as push-in connections for plumbing convenience. The
300
Series valves with 1/8 NPT Input, part numbers C030705 & C030725, are ideal for direct mounting in a manifold or other machine member. Metal and nylon toggles are offered to fit actuation requirements. Nylon toggles are available in seven colors with black as standard. Contact the factory to order colored actuators. Features:
Black anodized or electroless nickel plated for corrosion resistance
Swivel ports accommodate valve alignment requirements
Push-in ports ease tubing connection
Compact size
Nuts (2) and lockwasher provided

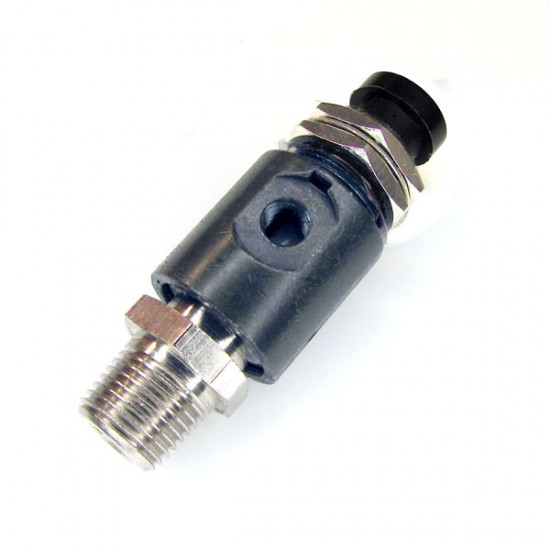

Pneumadyne A0-20-1
