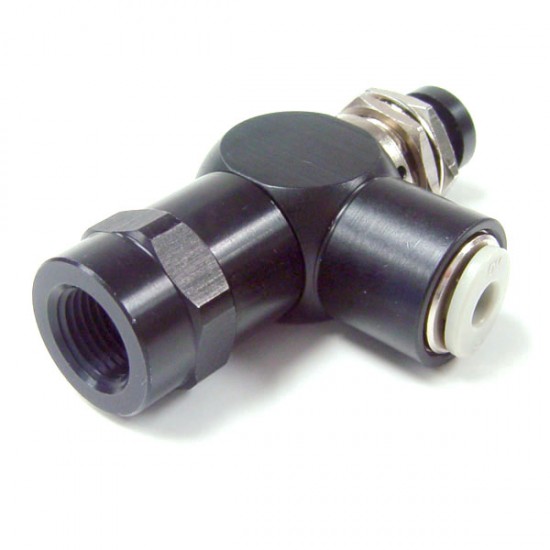

A11-30-47

1/8 NPT F Input Port, 3-Way Valves, Normally Closed

Push Button (1/8 NPT (F) Input, 3-Way Valves, Normally Closed) Seven configurations of 3-way valves with 1/8 NPT (F) input ports are offered to fit your application requirements. Pneumadyne's "0" & "3" Series valves, part numbers A0-30-4 & A3-30-4, feature swivel input ports for critical valve alignment. The "3" Series also has a 10-32 (F) exhaust port for the capture and removal of exhaust flow. "11" Series valves (part numbers start with A11) feature a swivel output port as well as push-in connections to ease tubing installation. Four styles of "400" Series valves (part numbers start with C04) are offered for plumbing convenience. Fully ported valves feature a 1/8 NPT (F) exhaust port for the capture and removal of exhaust flow in liquid, cleanroom or lubricated air applications. Features:
Black anodized for corrosion and wear resistance
High flow
Several porting configurations to fit plumbing requirements
Swivel ports accommodate critical valve alignment
Plumbing and mounting versatility
Lockwasher and nuts provided

Pneumadyne A11-30-47
