A0-30-6

1/4 Push-in Input Port, 3-Way Valves, Normally Closed

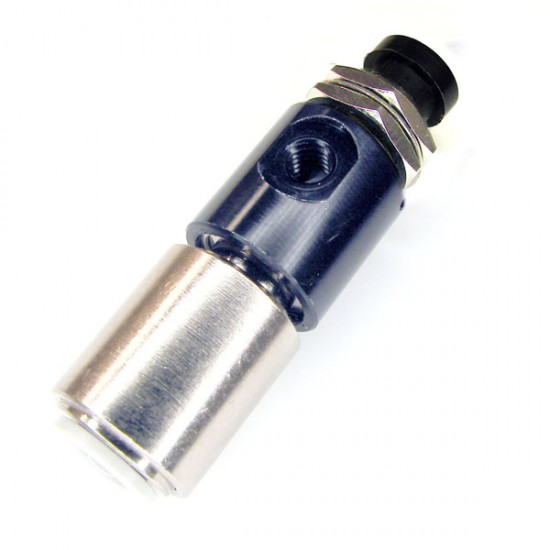

Push Button (1/4 Push-in Input, 3-Way Valves) Pneumadyne valves with push-in ports ease valve and tubing installation in your application. For plumbing convenience, three configurations are offered. Our highly reliable "0" Series valve, part number A0-30-6, features a swivel input port to accommodate valve alignment requirements. The "3" Series, part number A3-30-6, has a swivel input port and 10-32 (F) output & exhaust ports. The threaded exhaust port is ideal for removing exhaust flow from liquid and cleanroom applications. Pneumadyne's "11" Series (part numbers begin with A11) feature three swivel output port options. Push-in connections are included to speed tubing installation. Features:
Push-in ports speed tubing and valve installation
Black anodized and electroless nickel plated for corrosion resistance
Miniature size is ideal for applications where space is limited
Internal poppet design for long product life
Swivel ports for critical valve alignment
Lockwasher and nuts provided

Pneumadyne A0-30-6
