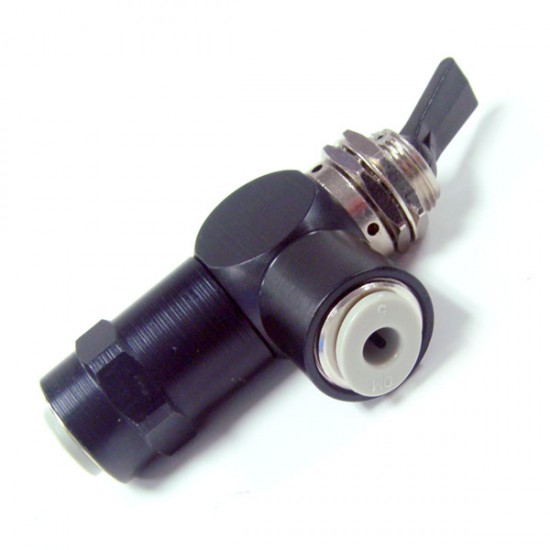

F11-20-67

1/4 Push-in Input Port, 2-Way Valves (2-Way Normally Closed Control Valves)

Momentary Toggle (1/4 Push-in Input, 2-Way Valves, Normally Closed) Push-to-connect ports offer faster tubing installation and plumbing convenience. Pneumadyne manufactures two styles of 2-way valves with push-to-connect ports to fit your application requirements. The highly reliable
0
Series valve, part number F0-20-6, features a swivel input port and 10-32 (F) output port. Our
11
Series valves (part numbers starting with F11) feature a swivel output port for alignment purposes. Push-in connections are also available in the output port to speed tubing installation. Durable nylon toggles are retained by a specially design roll pin which extends service life. Black momentary toggles are standard. Several colors are available, contact factory for ordering information. Features:
Swivel ports for alignment purposes
Anodized valve bodies offer corrosion and wear resistance
Push-to-connecto ports speed tubing installation
Internal poppet contributes to long product life
Nuts and lockwasher provided

Pneumadyne F11-20-67
