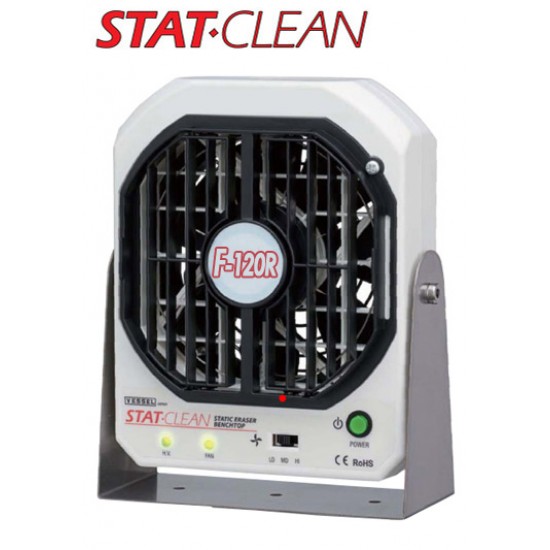

F120R-E

Powerful 3-Speed Fan Ionizer, Ultra-Slim and Compact, Adjustable Front Louver for "Wide" and "Straight" Airflow Coverage

Outstanding Performance: +/-10V Ion Balance
Quick and Long-Lasting Static Erasing
Adjustable Louver for "Wide" or "Straight" Coverage
Mountable Swivel Bracket for Various Blowing Directions
Powerful 3-Speed Fan (High-Medium-Low)
Ultra-Slim, Compact, and Lightweight Design
Built-in LED Operating Status Indicators
High-Voltage and Fan-Lock Alarms
Safe 24VDC Low Voltage Circuit
External Signal Outputs
Very Easy Maintenance

This powerful fan-type ionizer helps prevent dust adhesion caused by static electricity on plastic or electronic part surfaces during the manufacturing, assembly, or inspection process.

This unit is equipped with VESSEL’s newly developed compact-size A/C piezoelectric high frequency transformer along with a patented capacitive-coupled electrode needle, which generates an abundance of ions and neutralizes charged products quickly for a long-lasting ionizing performance.

Also, it features an ultra-slim, compact, and lightweight design for saving valuable work space and for easy installation. It has an innovative louver (front cover) that can be adjusted for a “straight” or “wide” airflow direction within seconds. Simply press the outer edge of the louver to disperse the airflow for a “wide” angle and simply press the center for a “straight” airflow pattern. Its powerful three-speed fan is capable of blowing ionized air to remote locations.

For easy maintenance, the front cover can be opened and closed with a single touch allowing quick access to the internal components. The electrode needle disk and front cover are attached as one unit so it can be easily replaced without tools.

Application Examples:
Before painting, plating, silk screening or printing process -
Helps prevent dust sticking to part surface, which may cause paint unevenness or ink sputtering due to static charge

Eliminates problems when stacking plastic cups on top of one another -
After being molded the cups may hold a static charge and be repulsive to each other, preventing them from properly being stacked one on top of another. Ionization will help this situation so the cups can stack properly

Prevents small molded parts from falling out of storage container -
When placing a lot of small plastic parts into a large storage container, the parts could "jump" out of the container due to static electricity. Static erasing over the container would be recommended

For Winding or rolling sheets of film
To prevent dust from sticking to molded plastic parts on a conveyor
Bag-making machines
Soldering applications
Film attachments
High-speed automated line manufacturing
Liquid crystal film cutting equipment
Electronic device component stock area

Specifications:
Ion Generation Method: Piezo high-frequency AC Corona discharge
Applied Voltage: AC10kV (p-p)
Input Voltage: 24VDC ±5%
Power Consumption: 700mA (max)
Weight: 1.99 lb
Airflow: 129.25ft3/min
Noise Level: 61 dBA (max and straight airflow) measured at 40"
Ozone Generation: 0.05ppm or less (measured at 2" from device)
Working Environment Temp. & Humidity: 41~104°F / 35~85% RH (no dewing or freezing)
Storage Environment Temp. & Humidity: 32~140°F / 35~85% RH (no dewing or freezing)
Operating Range: 6" to 36"
Decay Time: Within 1.5 seconds (max and straight airflow) measured at 12"
Ion Balance: Within ±10V (with standard nozzle, measured 12" from device)
Materials: Body: Flame-retardant ABS Resin; Stand: Stainless Steel; Front Cover: Flame-retardant ABS Resin; Needle Pole Electrode: Stainless Steel
