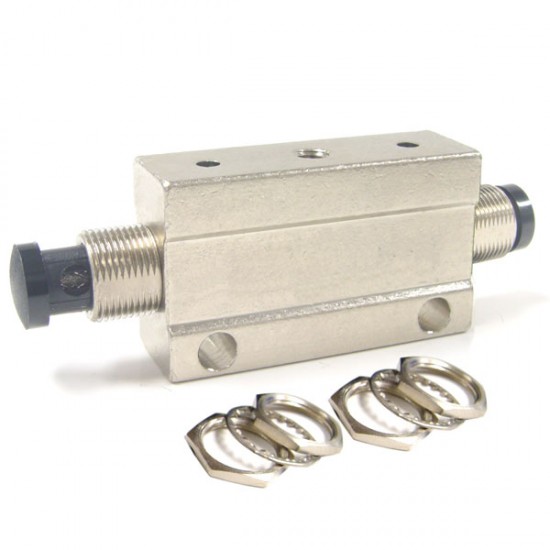

A4N-100-DP(discontinued)

Please contact us for replacement options

10-32 F Ports, 4-Way Valves

Double Push Button (10-32 F, 4-Way Valves) Double push button 4-way valves are most commonly used in conjunction with air pilot operators. This combination allows two different pneumatic signals to actuate the valve and direct air flow. To accommodate application requirements, Pneumadyne manufactures two styles of 4-way valves. The "4" Series valves, part numbers A4C-100-DP & A4N-100-DP, are considered 3-Port 2-Position (3/2) valves. Non-threaded exhaust ports allow air to exhaust to atmosphere. Pneumadyne's "45" Series valve, part number AP45-100-DP, is a 5-Port 2-Position (5/2) valve. The 10-32 (F) exhaust ports capture and remove exhaust flow in liquid or cleanroom applications. Features:
Durable nylon double push button actuators
Anodized or electroless nickel plated for corrosion resistance
Surface or panel mount
4-Way 2-Position function
Nuts and lockwasher provided

Pneumadyne A4N-100-DP
