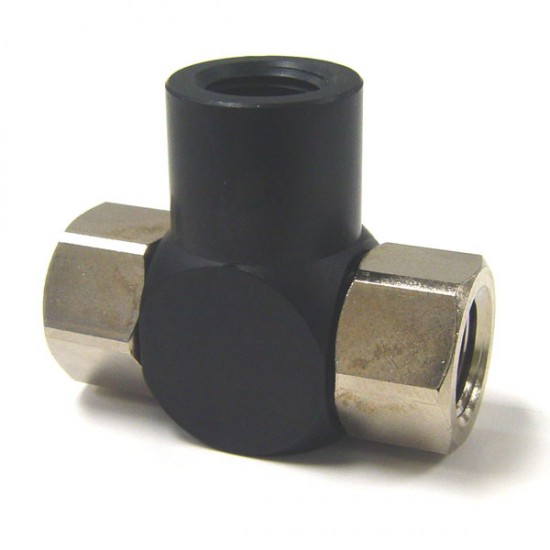

SV11-125-44
1/8 NPT (F) Output Port (Shuttle Valves)
Shuttle valves are used in pneumatic circuits to automatically select the higher of two input pressures, allowing media to flow from one input port to the output port. These valves are also called "OR" valves.
For plumbing convenience, Pneumadyne manufactures a variety of porting options. Our "11" Series Shuttle Valves feature 1/8 NPT (F) threads and push-to-connect ports which contribute to higher flow rates. Push-to-connect ports also reduce installation time by a minimum of 40% and eliminate the need for additional fittings.
Features:
Low cracking pressure
Black anodized and electroless nickel plated for corrosion resistance
Space saving
Long service life
Plumbing versatility
Pneumadyne SV11-125-44
Low cracking pressure
Black anodized and electroless nickel plated for corrosion resistance
Space saving
Long service life
Plumbing versatility
Pneumadyne SV11-125-44
$18.27
Ex Tax: $18.27
- Stock: In Stock
- Manufacturer: Pneumadyne
- Model: p41621
- SKU: SV11-125-44
