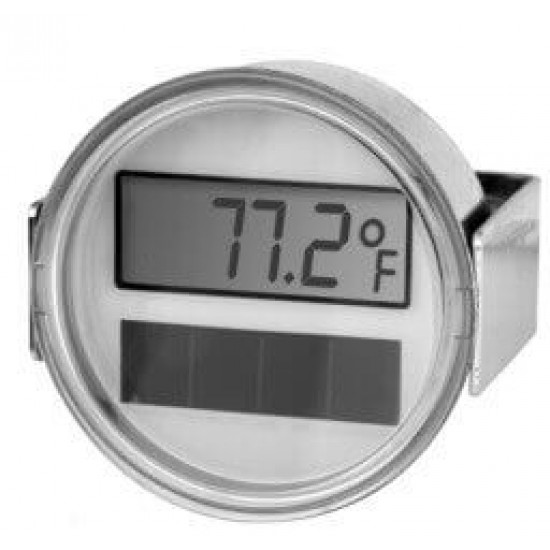

CDX93585

-58 to 302 degrees F / -50 to 150 degrees C Range. The solar-powered Miljoco CDX9 Series represents the next generation in industrial thermometers. The bold, hi-contrast display is easily read from greater distances than the typical glass tube thermometer. The unique, patented* design includes bi-directional solar panels, allowing the unit to collect light from multiple planes and providing reliable service in even the most dimly lit installations. The CDX9 Industrial Thermometer is furnished in one standard temperature range (-58 to 302 degrees F & -50 to 150 degrees C) which is switchable in the field. This wide range covers most applications for this type of product, while offering an environmentally-friendly alternative to the commonly specified mercury-in-glass thermometer. *Patent No. D488,396

TECHNICAL SPECS

CASE: High impact ABS black plastic.
STEM: Aluminum, 3-1/2.
CONNECTION: 1-1/4-18 UNF brass coupling nut.
SENSOR: Glass passivated thermistor.
RANGE: -58 to 302 degrees F (-50 to 150 degrees C), field-switchable between degrees F & degrees C.
DISPLAY: LCD, black character, 0.50 high with gray background.
ILLUMINANCE: Bi-directional solar collectors, 35 lux.
UPDATE TIME: 10 seconds.
ACCURACY: Greater value of 1 degrees or 1% of reading.
RESOLUTION: 0.10 degrees from -58 to 199.9 degrees F
(-50 degrees to 93 degrees C), 1.0 degrees from 200 to 302 degrees F (94 degrees to 150 degrees C).
RECALIBRATION: Internal potentiometer.
ENVIRONMENTAL CONDITIONS:
Ambient Temperature: -20 to 140 degrees F (-35 to 60 degrees C).
Ambient Temperature Error: None.
Maximum Humidity: 100%.


Miljoco CDX93585
